4040 BW Superflow Membrane

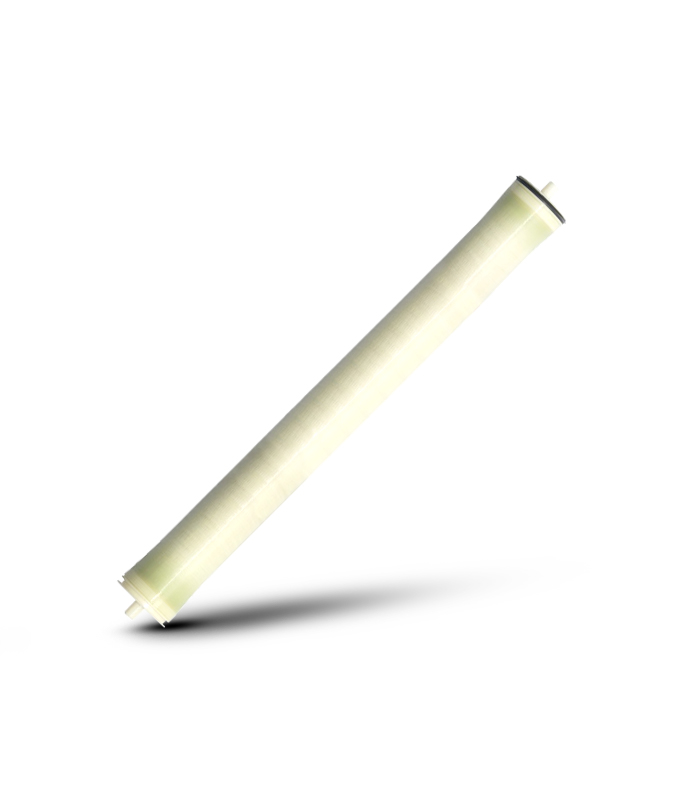

4040 Industrial RO Membrane

nThis world-class 4040 industrial ro membrane delivers high permeate flows and salt rejection at lower raw water pressures, compared to regular low-pressure membrane elements.  Suitable for brackish and bore water, however, a higher silt density index may require additional treatment.  It operates under approximately 2 thirds of the operating pressure of a regular low-pressure composite membrane and achieves a salt rejection rate of up to 98.0%.  The lower energy requirement decreases the equipment cost in particular pump rating and pressure rating of the membrane housing.n

n

n

n

n

n

n

n

n

n

n

n

n nn nn nnnnn

TESTING CONDITIONS

n

n
• Testing Pressure……. 150 psi (1.03Mpa)

n

• Testing Solution Temperature……. 25 ℃

n

• The concentration of Testing Solution (NaCl)……. 1500ppm

n

• pH value of Testing Solution……. 7.5

n

• Recovery Rate of Single Element……. 15%

n

n

OPERATION LIMITS & CONDITIONS

n

n
• Max. Working Pressure……. 600psi（4.14Mpa)

n

• Max. Volume of Feedwater…… 16gpm（3.6 m³/h)

n

• Max. Temperature of Feed-water……. 45℃

n

• Max. Feed-water SDI₁₅……. 5

n

• pH Range of Feed Water during Continuous Operation……. 3～10

n

• pH Range of Feed Water during Chemical Cleaning……. 2～12

n

• Residual Chlorine Concentration of Feed Water……. ＜0.1ppm

n

• Max. Pressure Drop of Single Reverse Osmosis Membrane Element……. 15psi（0.1Mpa)

n

• Max. Pressure Drop of Single Pressure Vessel with Six RO Membranes……. 50psi（0.34Mpa）

n

nSpecification ULP11-4040n

n
• Stable Rejection Rate: 98.0%

n

• Minimum Rejection Rate: 97.5%

n

• Average Permeated Flow: 2,800 gpd (9.1 m3/d)

n

• Active Membrane Area: 85 ft²

n

• Size: 4″ x 40 “

n

nOperating Conditionsn

n
• Max.Working Pressure: 600 psi

n

• Max.Feedwater Flow: 16 GPM (3.6 m3/h)

n

• Max. Feedwater Temperature: 45C

n

• Max. Feedwater SDI: 5

n

• Residual chlorine Concentration of Feed Water: <0.1ppm

n

• pH Range of Feedwater during Continuous Operation: 3~1

n

• pH Range of Feedwater during Chemical Cleaning: 2~12

n

• Max. Pressure Drop of Single Membrane Element: 10psi( 68 kPa)

n

nCommercial Applicationsn

n
• Drinking water for restaurants

n

• Drinking water vending machines

n

• Aquarium water treatment

n

• Softened water for homes, hotels, commercial laundries, and car wash.

n

• Post-treatment of deionized water

n

• Pure water for pharmaceuticals, laboratories, and electronics

n

• Hemodialysis

n

• Oil/water separation

n

• Spot free rinse – window and solar panel cleaning

n

• Sterilizers and autoclaves ( additional Deionising stage may be required)
