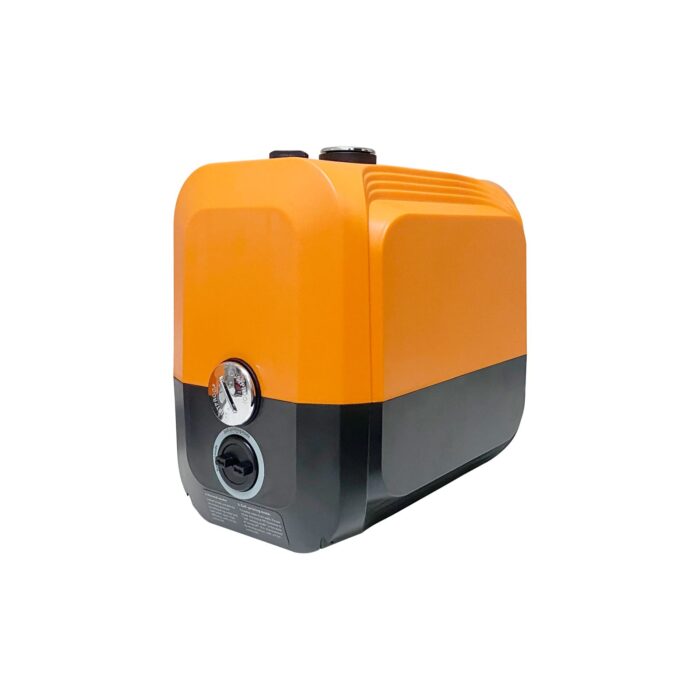

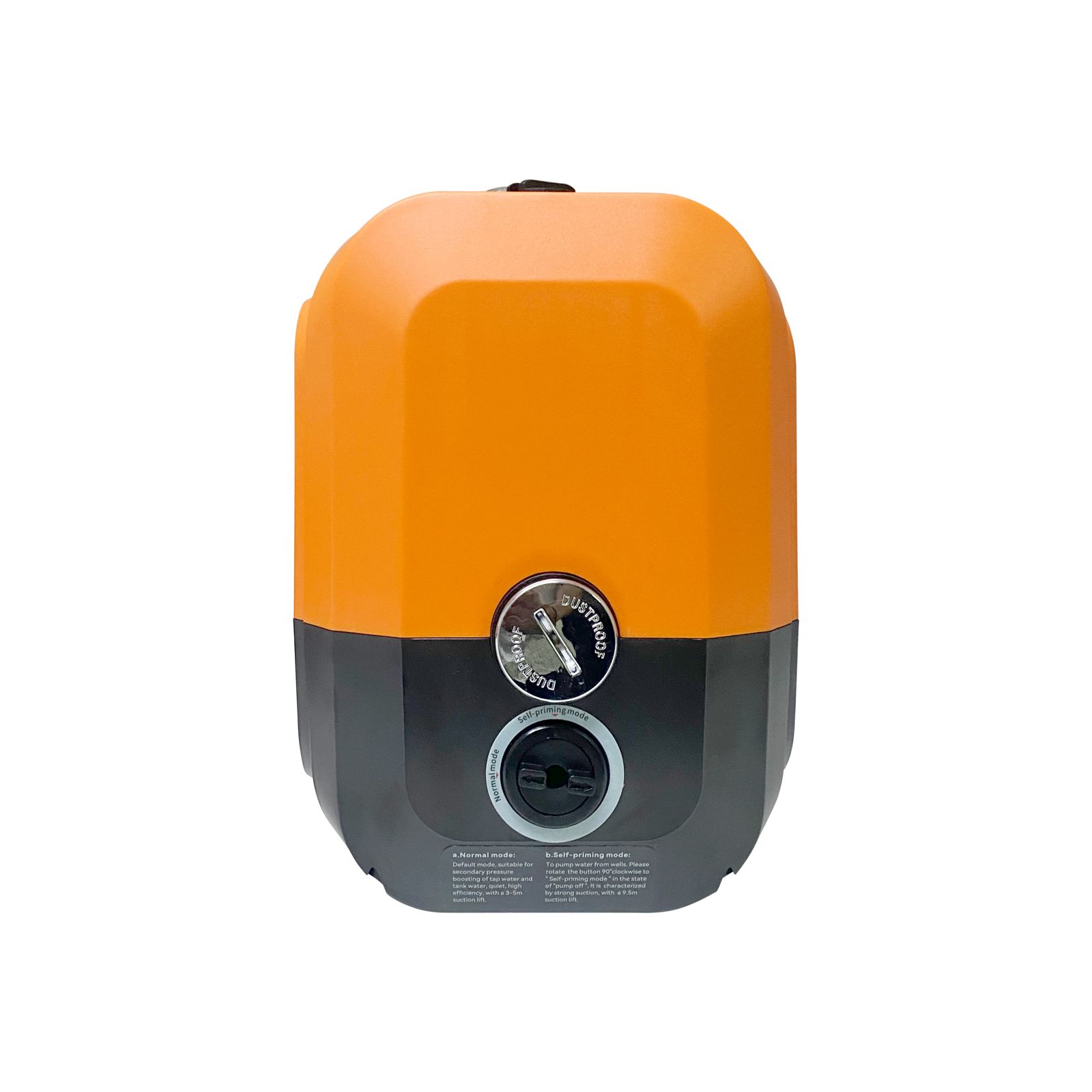

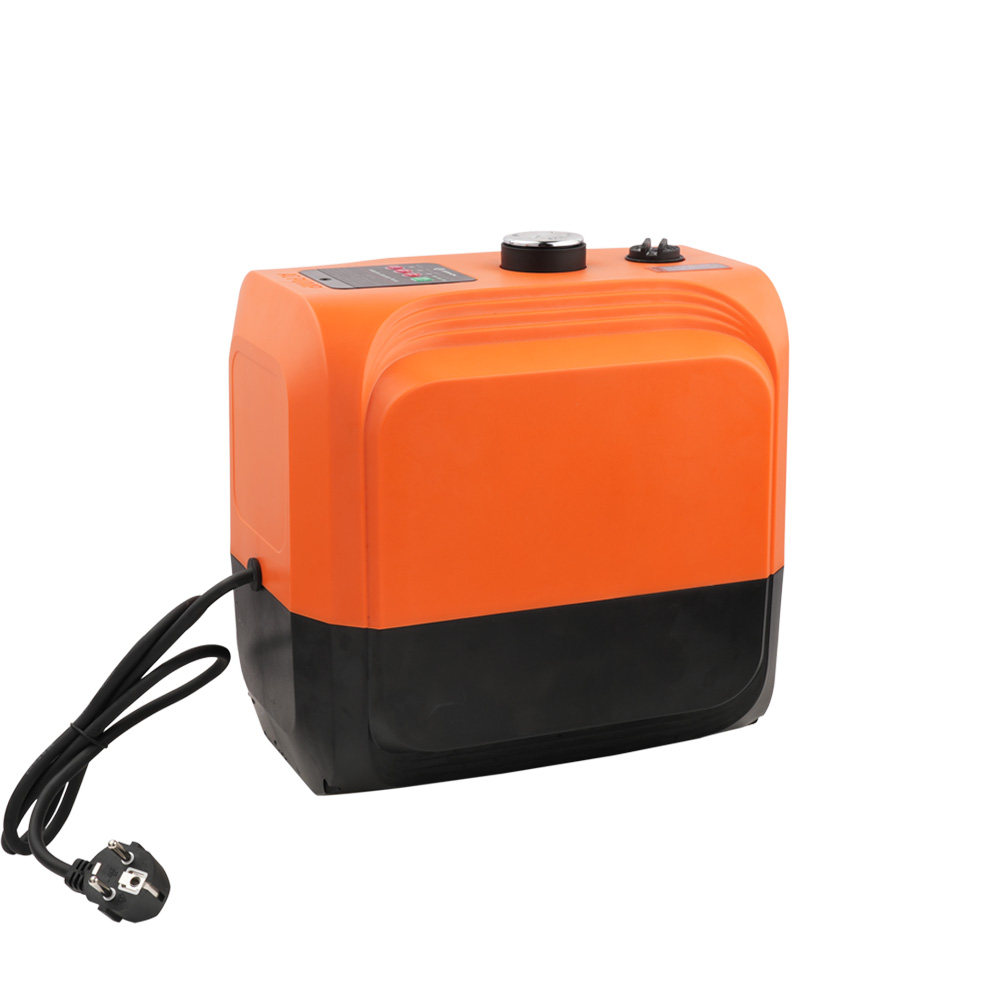

BPG1100 Adaptive Variable Frequency Permanent Magnet Booster Pump

R4,725

2 products sold in last 10 hours
Selling fast! Over 3 people have in their cart

Power : 105W-480W
nProtection : IP55
nAdaptive Variable Frequency
nPermanent Magnet
nBooster Pump for Wholehouse

22 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Variable Frequency Booster Pump – BPG1100 Adaptive Permanent Magnet

n

The BPG1100 Adaptive Variable Frequency Permanent Magnet Booster Pump is a high-performance pump designed to stabilize and boost water pressure across your home’s plumbing system. With smart adaptability, it matches output to demand, reducing energy consumption, and maintaining consistent flow at all fixtures.

n
n

Key Features & Capabilities

n

    n

  • n

    Adaptive Variable Frequency Control: The pump automatically adjusts motor speed and output based on real-time water demand, providing efficient operation and stable pressure levels. Water Purification Systems+1

    n

    • n

  • n

    Permanent Magnet Motor: Offers compact size, high efficiency, and precise speed control, ideal for variable output. Water Purification Systems

    n

    • n

  • n

    IP55 Protection: Dust-tight and protected against water jets, making it suitable for indoor or sheltered outdoor installation. Water Purification Systems

    n

    • n

  • n

    Quiet Operation: Designed for low noise levels (~20–30 dB) thanks to its motor and structure. Water Purification Systems+1

    n

    • n

  • n

    Built-in Safety Features: Includes protections such as dry-run (water shortage), overcurrent, undervoltage, and frequent start/stop safeguards. Water Purification Systems

    n

    • n

  • n

    Adaptive Start & Pressure Range: It automatically detects the pipe pressure and regulates starting pressure accordingly. Water Purification Systems

    n

    • n

  • n

    Wide Input Voltage Range: Compatible with single-phase power systems (100–140 V and 160–240 V, 50/60 Hz). Water Purification Systems+1

    n

    • n

  • n

    Good Suction Capability: Maximum suction up to 9.5 m, expanding usability for setups with elevation differences. Water Purification Systems

    n

    • n

n

Technical Specifications

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Specification Value / Range
Power 105 W – 480 W Water Purification Systems
Protection IP55 Water Purification Systems
Input Voltage 100–140V / 160–240V (single-phase) Water Purification Systems
Max Suction 9.5 m Water Purification Systems
Noise Level ~20–30 dB Edwin Pump+1
Operating Liquid Temperature 0-100 °C Water Purification Systems
Ambient Temperature 4-60 °C Water Purification Systems+1
Insulation Class H Water Purification Systems

n

n

n

Applications & Use Cases

n

    n

  • Boosting water pressure for the whole house

    • n

  • Supporting RO systems or other filtration units that require stable feed pressure

    • n

  • Enhancing flow in multi-storey homes or buildings

    • n

  • Garden or irrigation systems where variable pressure is beneficial

    • n

  • Systems where quiet, efficient operation is desired

    • n

n

Usage & Installation Notes

n

    n

  • This variable frequency booster pump is for clean, pretreated water only—not a filtration unit.

    • n

  • If feed water has sediments or high particulate content, install a proper pre-filter (e.g. sediment) upstream.

    • n

  • Ensure the system’s power supply matches the pump’s voltage range, and use surge protection if needed.

    • n

  • Avoid running the pump dry; the dry-run protection is helpful, but it’s best to maintain proper water supply.

    • n

  • When installing, use vibration dampers and mount on a stable surface to minimize noise and stress on plumbing.

    • n

n

Performance Chart :

n

n
n

Technical Data :

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Model Voltage
n（V）		 Power
n(W)		 Power
n(HP)		 Max.flow
n（m³/h）		 Max.flow
n（L/min）		 Max.head
n（m）		 Max.suction
n（m）		 PIPE
n（mm)
BPG-1100 DC60+60 400 0.5 4.5 75 50 9.5 1″×1″
